Goodlife PC awning
Our polycarbonate sheet advantage:
1) Makrolon PC resin from Bayer in Germany.Lexan raw material from GE in America.
2) Omipa UV-PC coextrusion lines (6lines).UV co-extrusion for long life-span.we import the UV-PC coextrusion from Omipa in Italy.so far ,we have 6 lines,two for hollow sheet,two for slid sheet,one for corrugated sheet,one for PC profile.
3) ISO 9001: 2008 & ISO 14000 proved.and we also have UL,ASTM,ROHS,Russian construct test,ect.
4) Light transmission rate up from 25%-88%.Different color and different thickness will result in different transparecy.For example the table:
5) Customized colors and dimensions
available upon request.

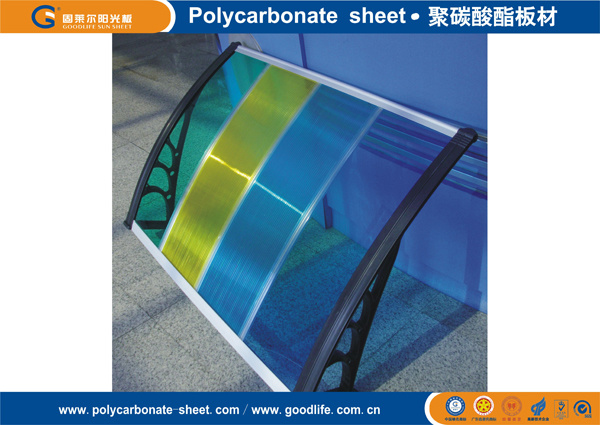

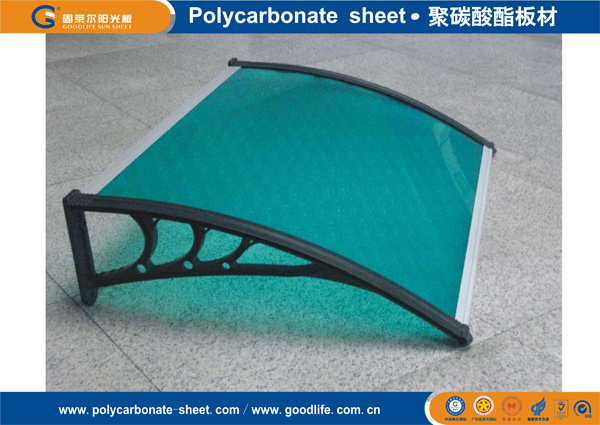

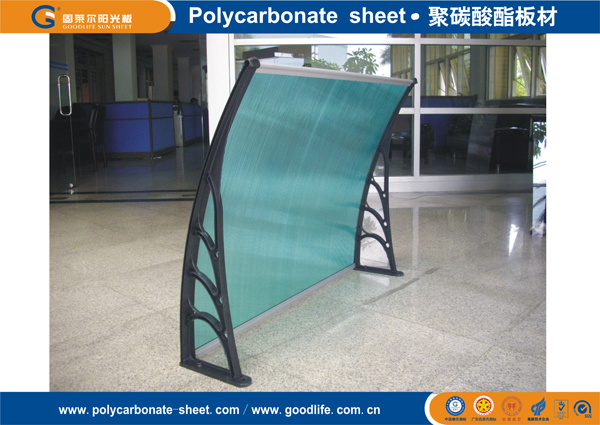

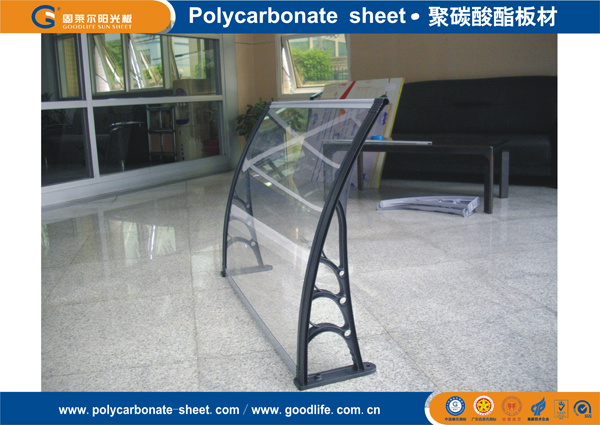

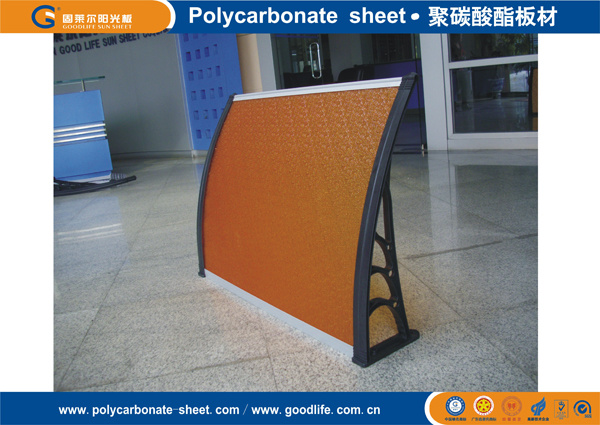

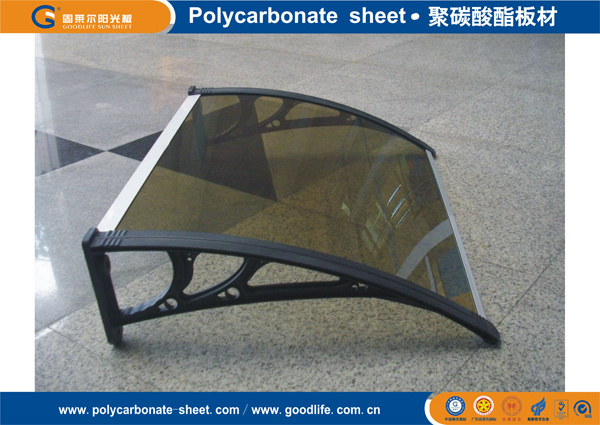

GOODLIFE Awning series:
2.Awning components instruction:
Dimension (Span x Width):
600 x 600mm, 600 x 800mm, 600 x 1200mm, 600 x 1600mm.
800 x 800mm, 800 x 1000mm, 800 x 1200mm, 800 x 1500mm, 800 x 2000mm.
1000 x 1000mm, 1000 x 1200mm, 1000 x 1500mm, 1000 x 2000mm.
1200 x 1000mm, 1200 x 1200mm, 1200 x 1500mm, 1200 x 2000mm.
1500 x 1000mm, 1500 x 1200mm, 1500 x 1500mm, 1500 x 2000mm
Bracket material: Plastic Bracket,15 years available.
Bracket color: White and Black
Connecting: Aluminum profile
Accessories: Setscrew, but 4 corners of bracket with self-tapping stainless steel screws.
Material: Polycarbonate Hollow sheet and Solid sheet
1) Change the traditional awning method, which assembled directly with plastic bracket, PC sheet, and Aluminum profile, and can be continually combined with multiple sets, extending freely.
2) Easy installation. No need special fabricated location and labor, only a few workers can be available, which save a lot of manpower and installation cost, and improve the labor efficiency.
3) High impact strength, UV resistance, anti-aging, long weather-resistance, corrosion resistance and other effects.
4) Safety performance: the Awing can withstand 12 typhoons attacking, especially for coastal areas and raining frequent areas. UV layer protection: which keep the Awing properties stably, safety and environment friendly. Strength: the Awing can allow a iron ball with the weight of 4.5 kgs fall on it directly without any broken.
5) Good looking. GOODLIFE keep high quality assurance. And both Hollow PC sheet and Solid PC sheet can be used for sky-lighting material, various colors available
1) Cloth Awning: weakness for terrible winds resistance.
2) Organic Glass Awning: easy to be broken.
3) Stainless steel Awning: too noisy when rains.
4) GOODLIFE PC sheet: wind-resistance, Sound-proof, Durable, nice appearance.
We can used on the top of doors, windows, outdoor machine of air condition, ATM teller machine and outdoor mailbox, etc. for shade, sunshine and raining.
We put quality and safety first. The components used within this door canopy have all been tested to meet or exceed UK snowload and wind pressure tests. The polycarbonate sheet is guaranteed for 10 years.
Your door canopy will be boxed and supplied flat pack and will include all components. We include easy to follow fitting instructions, a fixing template to make it easy to drill fixing holes in the correct place.Please note these may not be suitable for all walls, if you're in any doubt, please check with us.
We make your canopy to order. Due to the bespoke nature of the product after receiving your order we produce a technical drawing for your approval prior to starting production. Allow 10-15days for delivery.
any questions,pls feel free to contact us :)
